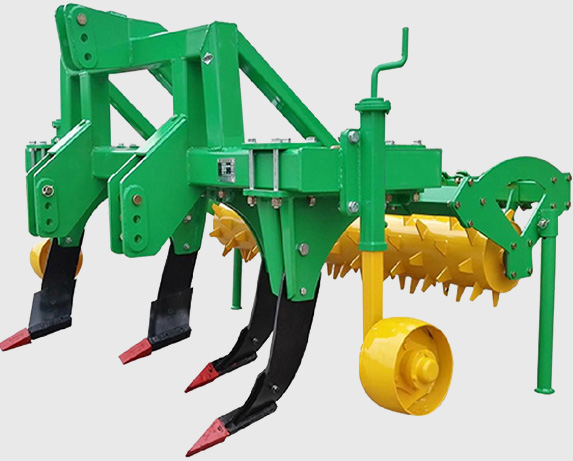

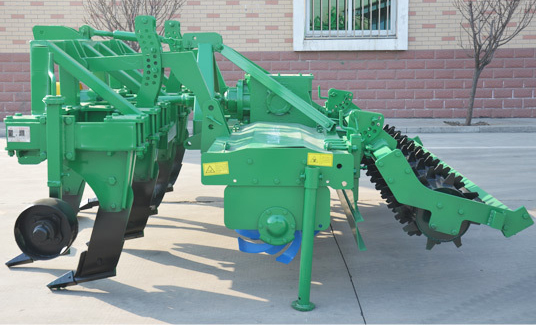

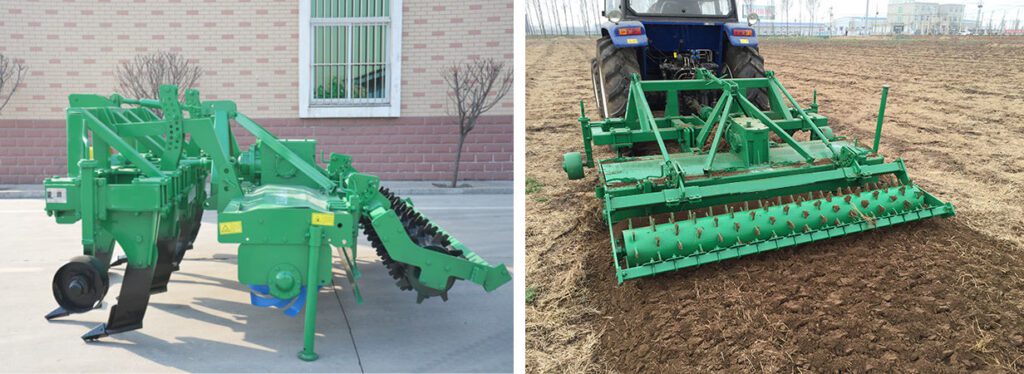

Integrated Sub-Tiller
| Tines: 4/6/8 Tines type: S/M/L Tines space: 20 cm adjustable Working depth: 25-50 cm Working width: 200/230/250/270/300/350/420 Depth of tillage: 8- 18 cm |
| The Integrated Sub-Tiller is an all-around subsoiling and soil preparation tool with compound operation functions. It adopts a unique partial-column curved surface subsoiling shovel made of high-strength boron steel, which can expand the scope of soil cultivation. It is equipped with a variety of series of rotary tillers and Various forms of pressing rollers can complete multiple processes such as subsoiling, rotary tillage, soil breaking, and pressing at one time, and the effect of soil preparation is good. |
More details
Specifications:
| Model | EKSC200 | EKSC230 | EKSC250 | EKSC270 | EKSC300 | EKSC350 | EKSC420 |
| Number of furrows | 4 | 4 | 4/6 | 6 | 6 | 6 | 8 |
| Tine- S – Cultivation Depth(cm) | 25~35 | 25~35 | 25~35 | 25~35 | 25~35 | – | – |
| Tine- M – Cultivation Depth(cm) | 25~45 | 25~45 | 25~45 | 25~45 | 25~45 | 25~45 | – |
| Tine- L – Cultivation Depth(cm) | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 |
| Depth of tillage(cm) | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 |
| Tine spacing(cm) | 55 | 55 | 62/42 | 45 | 52 | Middle 55, Side 70 | Middle 55, Side 60 |
| Tine type | Omni-directional arc inverted ladder type (high strength boron steel bending type) | ||||||
| Power requirement (kw) | 81~99 | 92~110 | 92~110 | 103~121 | 106~121 | 132~191 | 154~191 |
| Working width(cm) | 200 | 230 | 250 | 270 | 300 | 350 | 420 |
| Weight(kg) | 1680 | 1880 | 2045 | 2290 | 2390 | 2650 | 2900 |
| Dimensions(m) | 2.95×2.93×1.41 | 2.50×2.50×1.40 | 2.90×3.33×1.41 | 3.28×2.98×1.43 | 3.05×3.95×1.55 | 3.12×4.40×1.50 | 2.93×5.03×1.52 |
