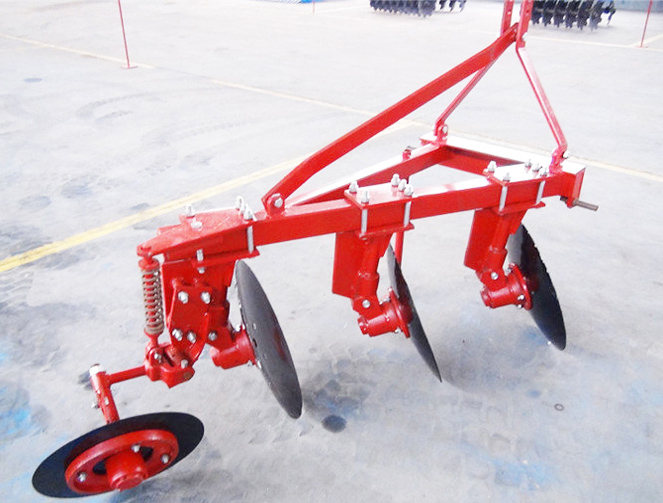

Reversible Disc Plow
| Disc: 3/4/5/6/7/8 Disc Dia. : 660/ 710 Working depth: 626- 1680 mm Working width: 750- 2400 mm |
| The ELSY series reversible disc plow is constructed to be a horizontal swing. It’s suitable for plowing up dry cultivated land. The discs are rotating forward during work, so the friction from the soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs, it’s easy to plough into the soil and the land surface is smooth after plowing. The productivity is high and the oil consumption is low. The plow has noticeable advantages for working on the terraced field and small block field. |
Specifications:
| Model | Discs | Size of disc (mm) | Working width(mm) | Weight(kg) | Working depth(mm) | Tractor (hp) |
|---|---|---|---|---|---|---|
| ELY-325S | 3 | 660-710 | 750-900 | 626-650 | 250-300 | 75-90 |
| ELY-425S | 4 | 1000-1200 | 758-790 | 90-100 | ||
| ELY-525S | 5 | 1250-1500 | 1050-1100 | 100-120 | ||
| ELY-625S | 6 | 1500-1800 | 1300-1350 | 120-130 | ||
| ELY-725S | 7 | 1750-2100 | 1450-1520 | 150-180 | ||
| ELY-825S | 8 | 2000-2400 | 1600-1680 | 180-210 |
