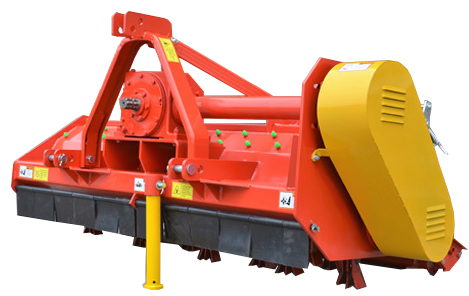

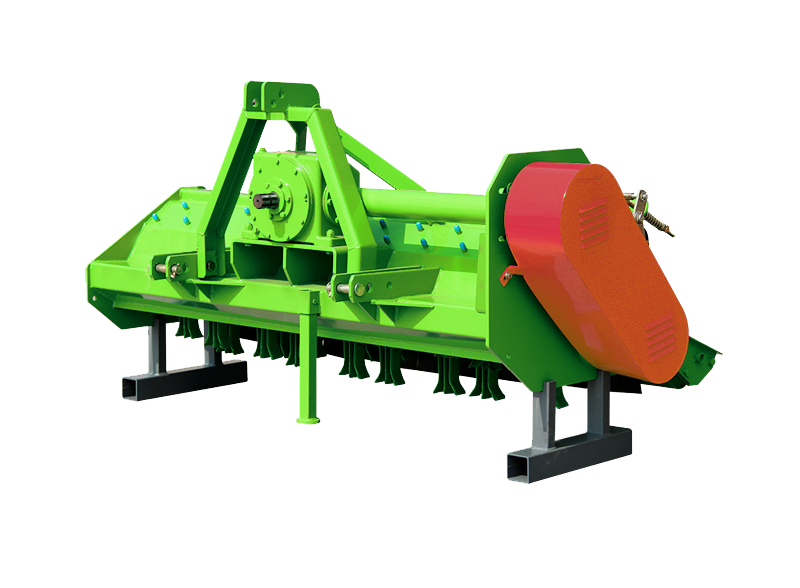

Single Shaft Mulcher
| Working depth: 1.20/1.30/1.50/1.80/2.0/2.2 m Hammers: (22x 2)- (30x 2) |
| 1. The length of the residual fork after crushing is consistent and the distribution is even 2. The use of new technology improves the service life of the tool 3. Increase the gear module of the gearbox to increase the speed ratio of the gearbox 4. Belt tightness can be quickly adjusted by external bolts 5. Strengthen the overall strength of the fuselage, and add a liner inside the shell |
Specifications:
| Model | EMSS-1.20 | EMSS-1.30 | EMSS-1.50 | EMSS-1.65 | EMSS-1.80 | EMSS-2.00 | EMSS-2.20 |
| Working width(m) | 1.20 | 1.30 | 1.50 | 1.65 | 1.80 | 2.00 | 2.20 |
| Power required(kw) | 22.05-29.40 | 29.40-36.75 | 35.30-58.80 | 35.30-51.50 | 66.15-80.30 | 66.20-88.30 | 80.90-95.60 |
| P.T.O Shaft speed(r/min) | 540-1000 | ||||||
| Working shaft speed(r/min) | – | 1800(540r/min), 2310(720r/min), 2400(760r/min), 2000(1000r/min) | |||||
| Transmission mode | Single shaft single side transmission | ||||||
| Number of hammers | 22*2+18*3 | 24*2+ 20*3/22*3 | 20*2+ 30*3 | 22*2+ 34*3 | 24*2+ 36*3 | 26*2+ 40*3 | 30*2+ 40*3 |
| Total width(m) | 1.40 | 1.51 | 1.76 | 1.91 | 2.06 | 2.26 | 2.46 |
| Total length(m) | 1.15 | 1.15 | 1.33 | 1.33 | 1.33 | 1.33 | 1.33 |
| Total height(m) | 0.90 | 0.90 | 1.05 | 1.05 | 1.05 | 1.05 | 1.05 |
| Weight(kg) | 265 | 285 | 430 | 440 | 480 | 540 | 600 |
