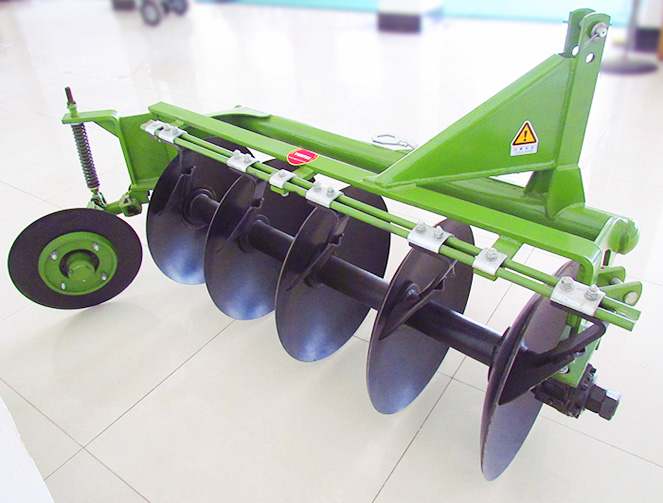

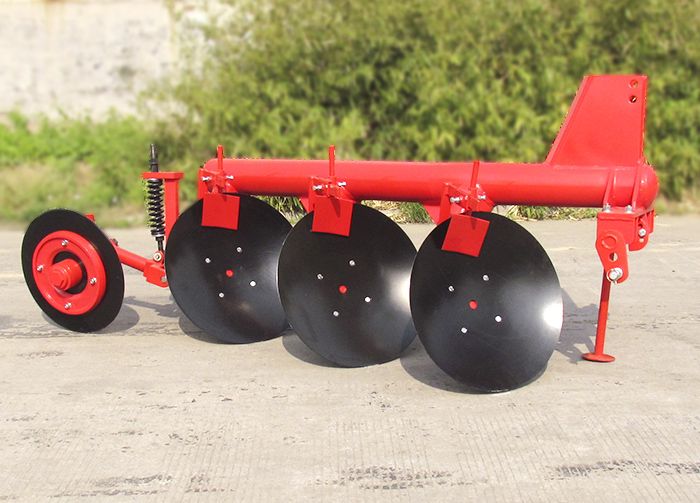

Disc Ploughs
| Discs: 2/3/4/5 discs Disc Dia. : 660 Working depth: 250 mm |
| 1. Tractor-mounted disc ploughs, available in 2, 3, 4, 5 discs. 2. It is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing. 3. It is used to open new fields and to process the stony areas. 4. Its special design allows to easier work in rocky and rooted areas. 5. It is especially useful in hard and dry trashy land. |
Specifications:
| Model | Discs | Disc Dia. (mm) | Working width(mm) | Working depth(mm) | Weight(kg) | Tractor (hp) |
| ELY-230D | 2 | 660 | 500-600 | 250 | 300 | 50-60 |
| ELY-330D | 3 | 660 | 750-900 | 250 | 390 | 75-90 |
| ELY-430D | 4 | 660 | 1000-1200 | 250 | 490 | 90-100 |
| ELY-530D | 5 | 660 | 1250-1500 | 250 | 575 | 100-120 |
