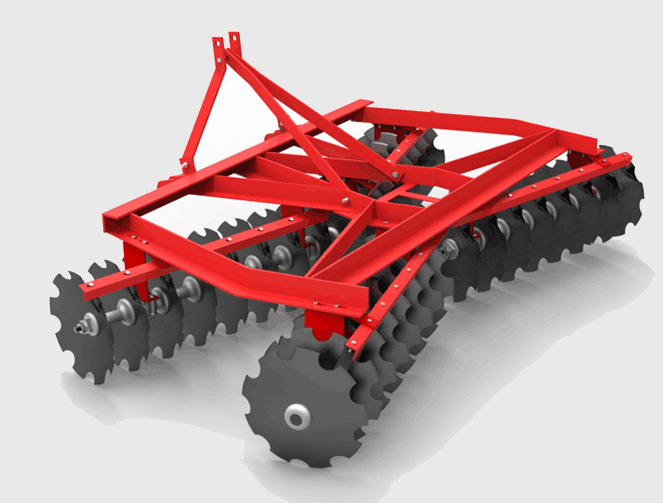

Middle Duty Mounted Disc Harrow
| Disc: 16/18/20/22/24/26 Disc Dia. : 560mm Working depth: 5.9″- 7.87″ (150- 200mm) Working width: 70.87″to 110.24″ Tractor: 50 to 100hp |
| The EBJX series hanging medium-sized disc harrow has a simple, strong and durable structure, easy to use and maintenance, good performance of soil breaking. |
Specifications:
| Model | Disc (Pcs) | Disc Dia. (mm) | Working Width(mm) | Working Depth(mm) | Weight(kg) | Tractor(hp) |
|---|---|---|---|---|---|---|
| EBJX-1.8 | 16 | 560 | 16 | 5.9″- 7.87″ (150- 200mm) | 445 | 50-60 |
| EBJX-2.0 | 18 | 560 | 18 | 5.9″- 7.87″ (150- 200mm) | 472 | 55-75 |
| EBJX-2.2 | 20 | 560 | 20 | 5.9″- 7.87″ (150- 200mm) | 540 | 55-75 |
| EBJX-2.4 | 22 | 560 | 22 | 5.9″- 7.87″ (150- 200mm) | 650 | 70-80 |
| EBJX-2.6 | 24 | 560 | 24 | 5.9″- 7.87″ (150- 200mm) | 680 | 70-80 |
| EBJX-2.8 | 26 | 560 | 26 | 5.9″- 7.87″ (150- 200mm) | 800 | 80-100 |
