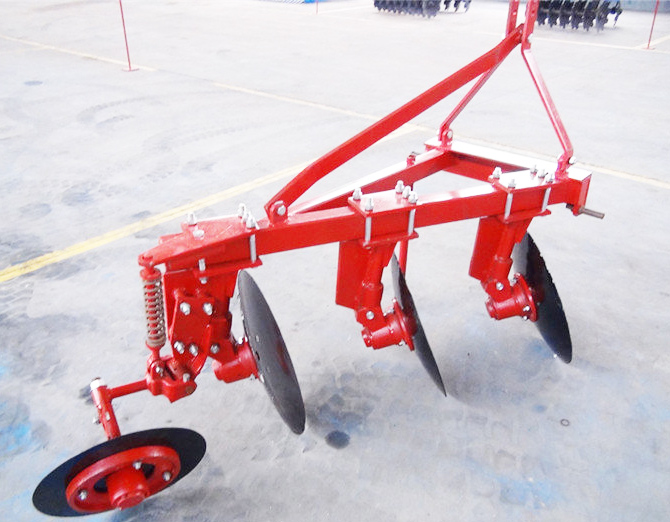

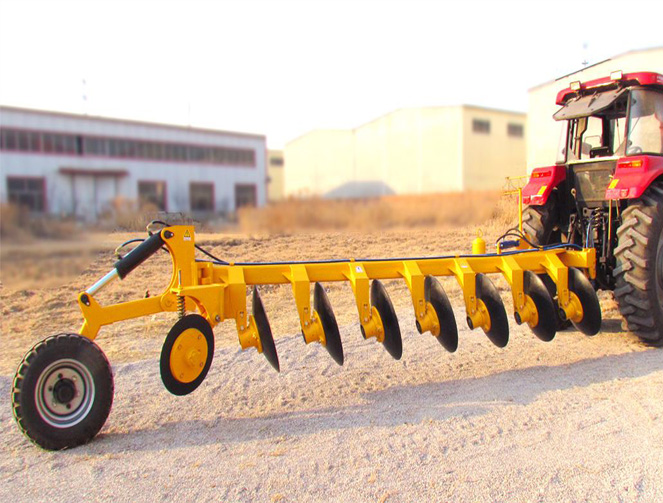

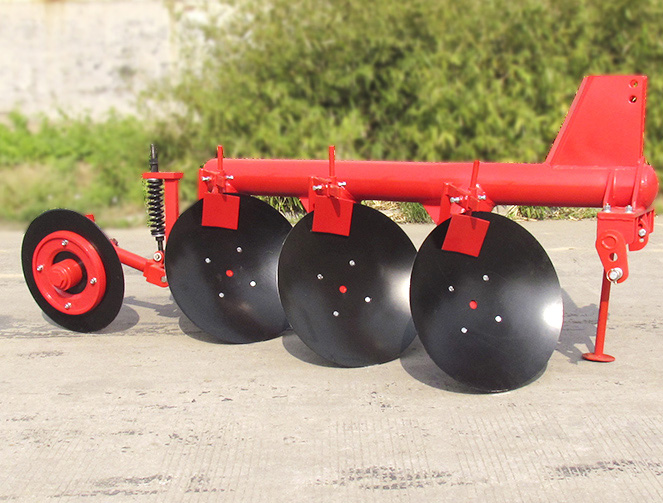

ELY Disc Ploughs
| Discs: 2/3/4/5 Disc Dia. : 460/510/560/660/710 Working depth: 180- 300 mm |
| Matched with tractors, it furrows soil when patches rotate, mainly applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. not tied with grass, not obstruct, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use, durable, etc. |
Specifications:
| Model | Discs | Disc Dia. (mm) | Working width(mm) | Working depth(mm) | Weight(kg) | Tractor (hp) |
|---|---|---|---|---|---|---|
| ELY-225 | 2 | 660/710 | 500 | 250-300 | 305-315 | 50-60 |
| ELY-315 | 3 | 460 | 450 | 180 | 170 | 25-30 |
| ELY-320 | 3 | 510 | 600 | 200 | 190 | 30-50 |
| ELY-322 | 3 | 560 | 660 | 220 | 316 | 45-55 |
| ELY-325 | 3 | 660/710 | 750 | 250-300 | 430-450 | 75-90 |
| ELY-425 | 4 | 660/710 | 1000 | 250-300 | 500-525 | 90-100 |
| ELY-525 | 5 | 660/710 | 1250 | 250-300 | 600-630 | 100-120 |
